Results on DB1
100 | 1000 | FMR | ||||||
0.10% | 0.11% | 0.21% | 0.21% | 0.00% | 0.00% | 0.12 sec | 2.47 sec | |
0.24% | 0.18% | 0.39% | 0.82% | 0.00% | 0.00% | 1.30 sec | 1.15 sec | |
0.25% | 0.21% | 0.36% | 0.86% | 0.00% | 0.00% | 2.26 sec | 1.99 sec | |
0.52% | 0.86% | 0.96% | 1.11% | 0.00% | 0.00% | 0.54 sec | 0.58 sec | |
0.61% | 0.54% | 1.14% | 1.36% | 0.00% | 0.00% | 0.92 sec | 0.76 sec | |
0.63% | 0.61% | 0.82% | 1.04% | 0.00% | 0.00% | 0.07 sec | 0.24 sec | |
0.67% | 0.61% | 1.00% | 1.64% | 0.00% | 0.00% | 4.82 sec | 1.97 sec | |
0.98% | 1.00% | 2.21% | 3.50% | 0.00% | 0.00% | 0.52 sec | 0.52 sec | |
1.17% | 1.21% | 2.21% | 2.79% | 0.00% | 0.00% | 0.55 sec | 0.67 sec | |
1.46% | 1.61% | 2.25% | 26.36% | 0.00% | 0.04% | 0.17 sec | 0.44 sec | |
1.63% | 1.79% | 2.36% | 3.57% | 0.00% | 0.00% | 0.53 sec | 0.61 sec | |
1.85% | 2.18% | 3.39% | 7.43% | 0.00% | 0.00% | 0.56 sec | 0.68 sec | |
1.91% | 2.46% | 3.82% | 4.18% | 0.00% | 0.00% | 0.26 sec | 0.27 sec | |
2.15% | 2.75% | 5.32% | 7.96% | 0.00% | 0.00% | 0.19 sec | 0.20 sec | |
2.36% | 2.82% | 4.29% | 4.64% | 0.00% | 0.00% | 0.58 sec | 0.60 sec | |
2.57% | 2.68% | 3.25% | 3.82% | 1.29% | 0.80% | 0.83 sec | 1.29 sec | |
2.70% | 3.29% | 5.64% | 7.93% | 0.00% | 0.00% | 0.80 sec | 1.84 sec | |
2.72% | 4.46% | 7.14% | 8.93% | 0.00% | 0.00% | 0.67 sec | 0.68 sec | |
3.02% | 3.75% | 5.64% | 9.07% | 0.29% | 0.18% | 0.34 sec | 0.59 sec | |
3.74% | 6.86% | 13.29% | 18.68% | 0.00% | 0.00% | 0.21 sec | 0.61 sec | |
3.85% | 6.11% | 10.75% | 21.57% | 0.00% | 0.01% | 0.01 sec | 3.16 sec | |
4.37% | 4.71% | 5.29% | 5.79% | 0.00% | 0.00% | 1.91 sec | 1.91 sec | |
4.78% | 9.43% | 17.64% | 20.89% | 0.00% | 0.00% | 0.52 sec | 0.87 sec | |
4.97% | 7.21% | 15.04% | 21.04% | 1.00% | 0.71% | 0.69 sec | 0.74 sec | |
6.12% | 13.75% | 13.75% | 19.39% | 0.43% | 0.04% | 0.70 sec | 0.71 sec | |
6.71% | 9.39% | 12.39% | 15.86% | 0.00% | 0.00% | 0.13 sec | 0.16 sec | |
8.27% | 16.96% | 23.86% | 33.14% | 0.86% | 0.54% | 0.51 sec | 0.52 sec | |
16.28% | 24.00% | 28.11% | 40.82% | 0.00% | 0.12% | 1.22 sec | 1.24 sec | |
17.34% | 40.39% | 54.07% | 60.93% | 0.00% | 0.79% | 0.59 sec | 0.68 sec | |
35.00% | 83.96% | 93.14% | 98.64% | 0.57% | 0.14% | 0.56 sec | 0.67 sec | |
50.00% | 100.00% | 100.00% | 100.00% | 0.00% | 100.00% | 7.59 sec | 5.01 sec |

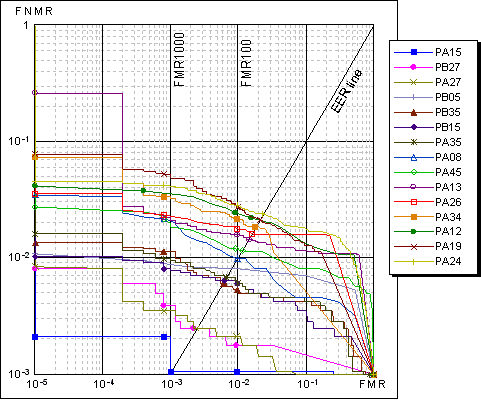

Comparative ROC (only the first 15 algorithms in the above table are reported).
For each algorithm the five points corresponding to ZeroFMR, FMR1000, FMR100, EER and ZeroFNMR are highlighted.
Note that these points not necessarily lie on the corresponding theoretical lines, due to the finite
number of tests and the quantized output of the algorithms.
|
|
|
